CE100 Angle Roll w/hydraulic 3 axis twist

CE100H3-RLI Angle Roll: 4″ Gas inches (6 mm) capacity

Electrical Options:
220V or 480V 3ph

THIS VIDEO SHOWS ERCOLINA’S CE100H3-RLI ANGLE ROLL BENDING I-Beam!

Ercolina’s CE100 Angle Roll – Section Bender has a heavy-duty structure with rigid components for high section modulus ratings.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

• 100 mm roll shaft diameter
• 150 mm x 5 mm round tube capacity
• 4″ Gas inches (6 mm) capacity
• 100 x 100 x 12 mm angle iron capacity
• Bending speeds 20% faster than competitive machines
• Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
• Heavy duty structure and rigid components for high section modulus ratings
• Reinforced engineered mainframe design proven to outperform competitive models
• Three axis hydraulic twist system for angle iron “Leg-in” applications

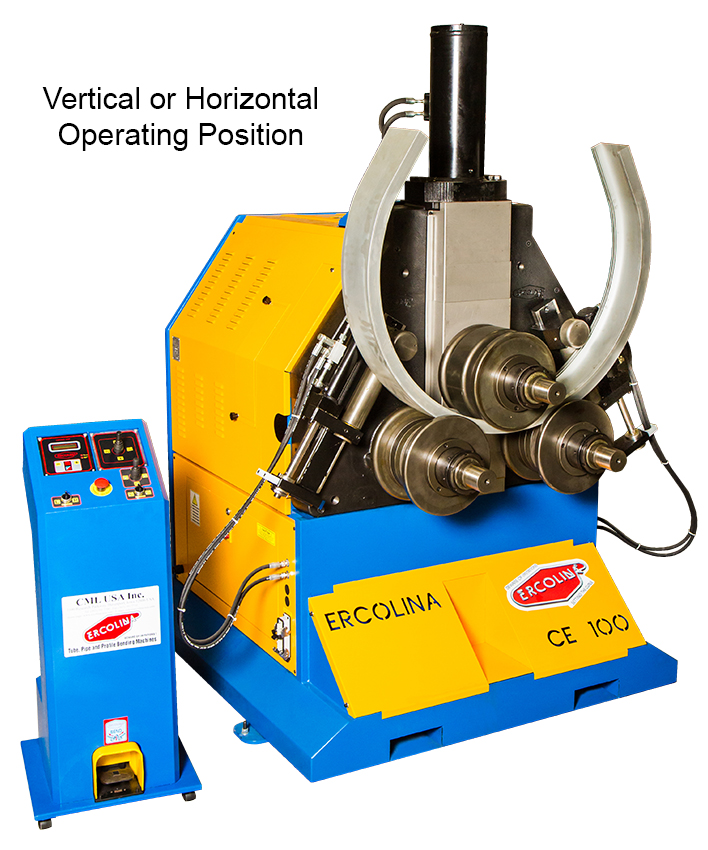

• Vertical or horizontal operating position
• Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation
• Programmable touch pad controls with digital center roll positioning display
• Memory storage with eight (8) individual programs and unlimited passes
• Remote control pendent with low voltage controls and foot pedal switch
• Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
• Inline direct drive roll shaft system with motor and brake on each shaft
• All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.
