TB100 Top Bender

TB100 Top Bender®: Bends to 100 x 6 mm Tube

Electrical Options:
220V Three Phase     /     480V Three Phase

THIS VIDEO SHOWS ERCOLINA’S TB100 TOP BENDER® ROTARY DRAW BENDER BENDING 2-1/2″ x 2-1/2″ – 3/16″ WALL STEEL!

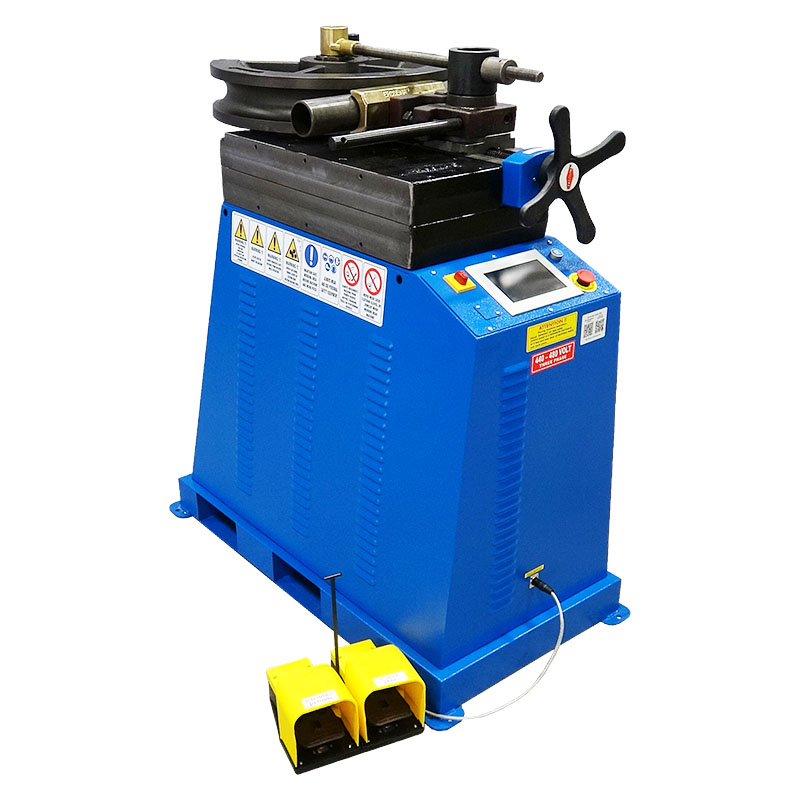

Ercolina TB100 Top Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

• Mild steel tube capacity 100 x 6 mm
• 3″ Gas inches (5.5 mm) capacity
• Square tube capacity 60 x 60 x 6 mm
• Maximum CLR 400 mm
• Bend to CLR as small as 2 x Ø
• Touch screen programming of bend angle with system diagnostics in multiple languages
• Quick-change tooling system
• Digital display of bend angle

• Material springback compensation
• Foot pedal control of bend and return functions
• Counterbending die positioning monitored electronically for accuracy and repeatability
• Heavy-duty steel gear case
• No hydraulic components
• All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.

ROTARY DRAW ACCESSORIES

Use Ercolina’s rotary draw accessories to expand the capabilities of your Ercolina machine. Not sure what you need? Call us and we will walk you through which accessories would best suit your requirements.

A40/P TWO AXIS POSITIONER

A40-P Two Axis Positioner is ideal for repetitive parts and left and right mirror images. Use with Ercolina’s Super Bend-Tech SE software to quickly layout and produce drawings for bending applications.

BENDING SOFTWARE

Use Ercolina’s Super Bend-Tech SE bending software to quickly layout and produce drawings for pipe and tube rotary draw bending applications! Ideal for use with A40-P Two Axis Positioner.
