TB180 Top Bender

TB180 Top Bender®: Bends to 150 x 9 mm Tube

Electrical Options:
440-480V Three Phase

THIS VIDEO SHOWS AN OVERVIEW OF THE ERCOLINA TB180 TOP BENDER® ROTARY DRAW BENDER

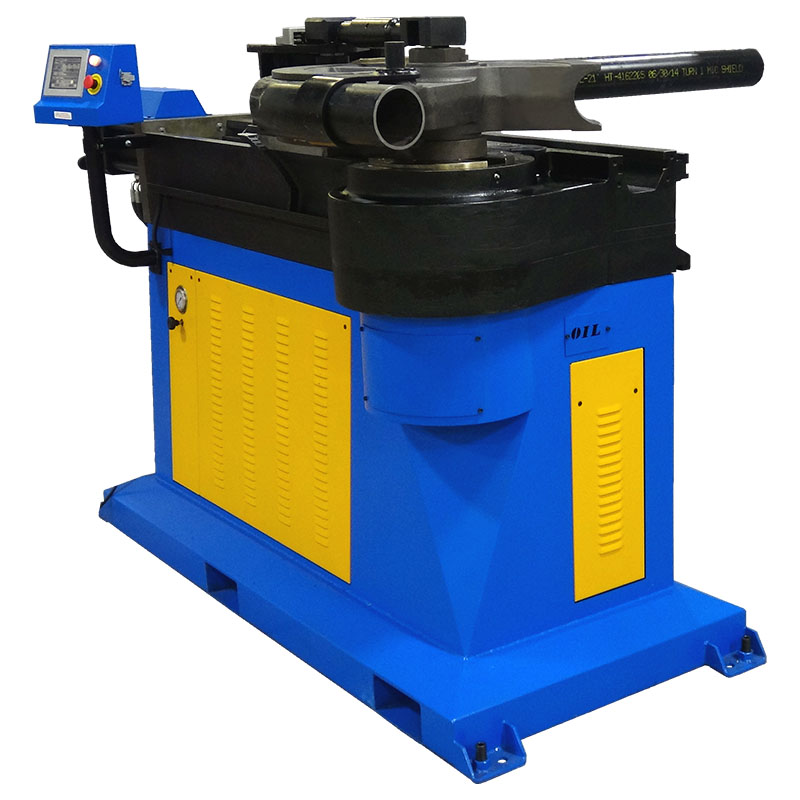

Ercolina TB180 Top Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

• Tube capacity 150 x 9 mm
• 6″ Gas inches (7.1 mm) capacity
• Square tube capacity 140 x 140 x 6 mm
• Maximum CLR (standard machine) 596 mm
• Maximum CLR (machine with case extension) 800 mm
• Bend to CLR as small as 3 x Ø or 114 mm CLR
• Touch screen programming of bend angle with system diagnostics in multiple languages
• Quick-change tooling system
• Digital display of bend angle

• Material springback compensation
• Hand-held remote control of bend, return and emergency stop functions
• Counterbending die positioning monitored electronically for accuracy and repeatability
• Heavy-duty steel gear case
• Optional hydraulic clamping system available
• All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.

ROTARY DRAW ACCESSORIES

Use Ercolina’s rotary draw accessories to expand the capabilities of your Ercolina machine. Not sure what you need? Call us and we will walk you through which accessories would best suit your requirements.

BENDING SOFTWARE

Use Ercolina’s Super Bend-Tech SE bending software to quickly layout and produce drawings for pipe and tube rotary draw bending applications!.

TOOLING

Pipe and Tube Tooling Available in 3D and 5D Centerline Radius
Quoted on Request

May Require Additional Mounting Component
