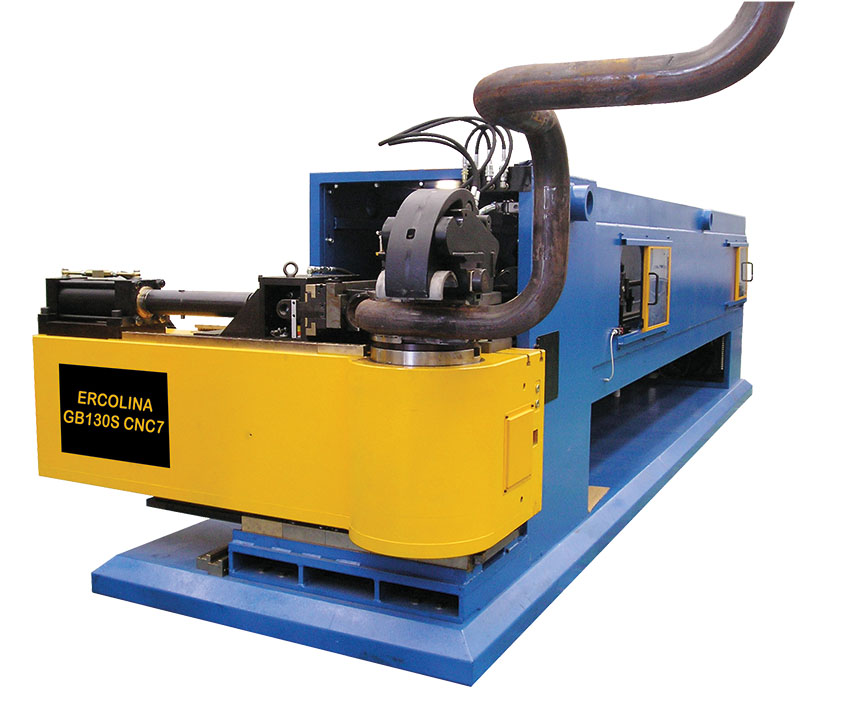

GB130CNC Giga Bender

Request a quote on this mandrel bender or call 519-455-7100, for immediate assistance.

GB130CNC Giga Bender: Tube capacity to 141.3 x 4.7 mm

Electrical Options:
480V Three Phase

THIS VIDEO FEATURES ERCOLINA’S GB130 GIGA BENDER!

Ercolina’s GB130 CNC mandrel bender is ideal for industrial bending of tube, pipe, square and rectangular profiles to a center line radius as tight as 1.5 x diameter. Large radii tooling available to 18″ CLR.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

• Mild steel tube capacity 141.3 x 4.7 mm
• 4″ Gas inches (6 mm) capacity
• Square tube capacity 110 x 110 x 5 mm
• Maximum bending radius 450 mm
• Minimum bending radiu 1.3 x Ø
• Maximum material length through carriage 6 m
• Maximum material length in carriage 4.5 m
• Interactive PLC touch screen offers easy access to auto and manual operating modes, system diagnostics and multiple language capability
• Programmable bend angles with independent material springback setting for each bend
• Programmable auto mandrel positioning allows operator to optimize extraction for improved bend quality
• Programmable clamping, pressure die and boost movements with manual override

• USB for unlimited program memory storage and communication
• Precision encoders on each axis
• Touch screen displays absolute (ABS) or incremental (INC) positioning with inch or metric readout
• Programmable tail stock interference zone monitors position and eliminates workhead collision
• Standard hydraulic ports accept Ercolina’s patented (KST) clam shell clamp system
• Accepts YBC and XYZ input values
• Y – Feeding Hydraulic
• B – Feeding Hydraulic
• C – Bending Hydraulic CNC
