CE40H3 Angle Roll

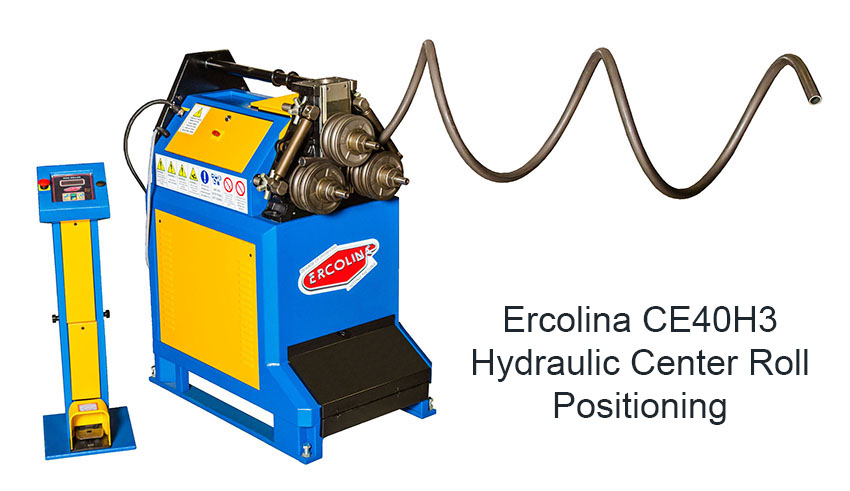

Ercolina-CE40H3_coil

Image 1 of 7

CE40H3 Angle Roll: 2″ Gas inches (3.2 mm) capacity

Electrical Options:
220V or 480V 3ph

ERCOLINA’S CE40H3 ANGLE ROLL BENDING 1-1/2″ SCH. 40!

Ercolina’s CE40H3 angle roll model offers hydraulic center roll positioning.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

40mm roll shaft diameter
70 x 1.5 mm round tube capacity
2″ Gas inches (3.2 mm) capacity
50 x 50 x 6 mm angle iron capacity
Bending speeds 20% faster than competitive machines
Universal tooling set included with each machine – 6-5/8″ OD
Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
Heavy duty structure and rigid components for high section modulus ratings
Reinforced engineered mainframe design proven to outperform competitive models
Patented by Ercolina simultaneous downfeed and roll movement to minimize deformation on hydraulic model

Programmable touchpad controls with digital center roll position display on hydraulic model
Digital center roll position display on manual model
Hydraulic machine with memory storage with eight (8) individual programs and unlimited passes
Remote pendent with low voltage controls and foot pedal switch
Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
Inline direct drive roll shaft system
Optional Anti-twist correction system for angle iron “Leg In” applications
All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.
