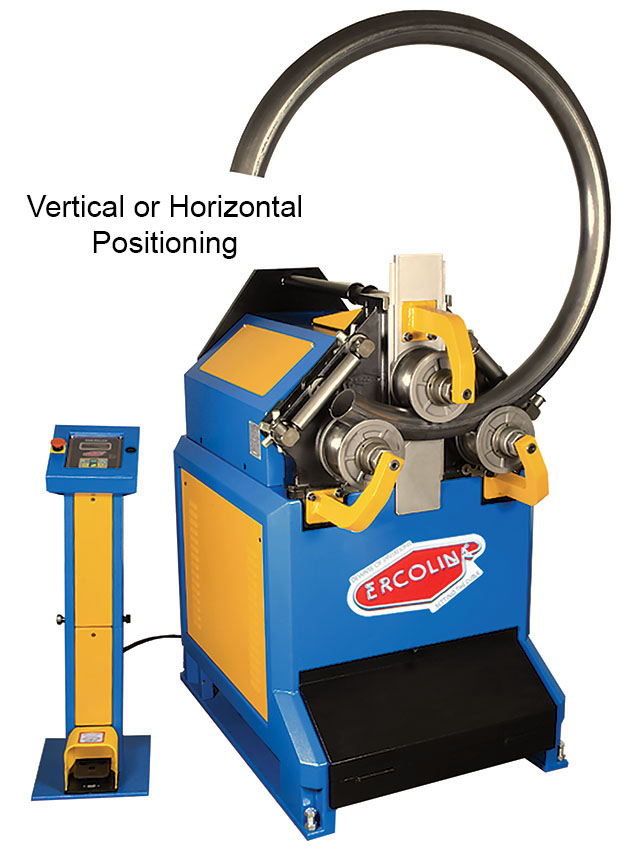

CE60H3 ANGLE ROLL

ce60h3

Image 1 of 8

CE60H3 Angle Roll: 2-1/2″ Gas inches (3.6 mm) capacity

Electrical Options:
220V or 480V 3ph

Ercolina’s CE60H3 Angle Roll is shown here rolling 1-1/2”, .120 wall 1008/1010 mild steel tube to a 24” diameter with a 6” pitch!

Ercolina’s CE60H3 angle roll model offers hydraulic center roll positioning.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

50mm roll shaft diameter
88 x 3 mm round tube capacity
2-1/2″ Gas inches (3.6
Maximum angle capacity 60 x 60 x 10 mm
Bending speeds 20% faster than competitive machines
Universal tooling set included with each machine – 7″ OD
Uses same tooling as CE50
Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
Heavy duty structure and rigid components for high section modulus ratings
Reinforced engineered mainframe design proven to outperform competitive models
Patented by Ercolina simultaneous downfeed and roll movement to minimize deformation

Touchpad controls with digital center roll positioning
Tie bar supports for each shaft
Hydraulic machine with memory storage has eight (8) individual programs and unlimited passes
Remote pendent with low voltage controls and foot pedal switch
Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
In-line direct drive roll shaft system 3-roll driven
Optional Anti-twist correction system for angle iron “Leg In” applications
All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.
