48 Plus

48 PLUS: Bends to 48 x 3.5 mm Tube

Electrical Options:
220V Single Phase

THIS VIDEO SHOWS HOW EASY IT IS TO BEND 1″ SQUARE TUBE ON ERCOLINA’S 48 PLUS ROTARY DRAW BENDER!

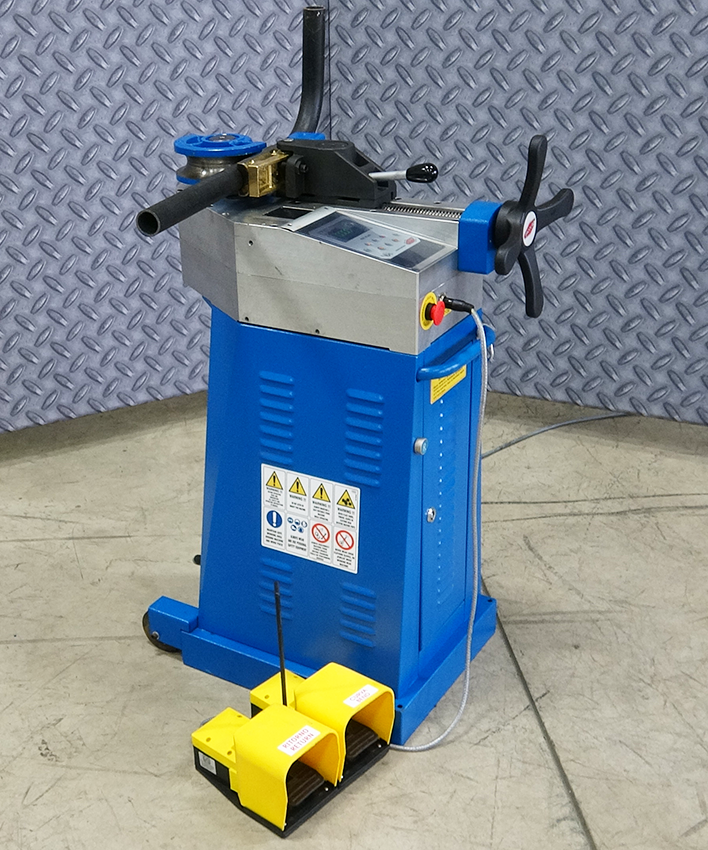

Ercolina’s 48 Plus eliminates difficult programming and allows the operator to store and produce desired bend angle in seconds. This model is ideal for producing consistent quality bends in pipe, tube, squares, solids and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

• Mild steel tube capacity 48 x 3.5 mm

• Pipe capacity 1-1/2″ Gas inches (3.6 mm) capacity
• Square tube capacity 38 x 38 x 3 mm
• Maximum CLR 225 mm
• Bend to CLR as small as 2 x Ø
• Easy one touch control allows any operator to program and automatically store bend angle
• Large easy to read color coded control displays all current information in real time
• Separate display of material spring back for greater accuracy on a variety of materials
• Bend any angle to 180° with independent material springback compensation for each bend
• Single bending speed

• Initiate bend cycle from the control panel or included foot pedal
• Quick-change tooling system with multiple radii available
• Swing away counterbending die vise for easy material handling
• Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
• Classic Ercolina design reduces floor space requirement and easily stores to save shop floor space
• Operates from single phase 220 volts for greater convenience and efficiency
• No hydraulic components
• All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.

ROTARY DRAW ACCESSORIES

Use Ercolina’s rotary draw accessories to expand the capabilities of your Ercolina machine. Not sure what you need? Call us and we will walk you through which accessories would best suit your requirements.
