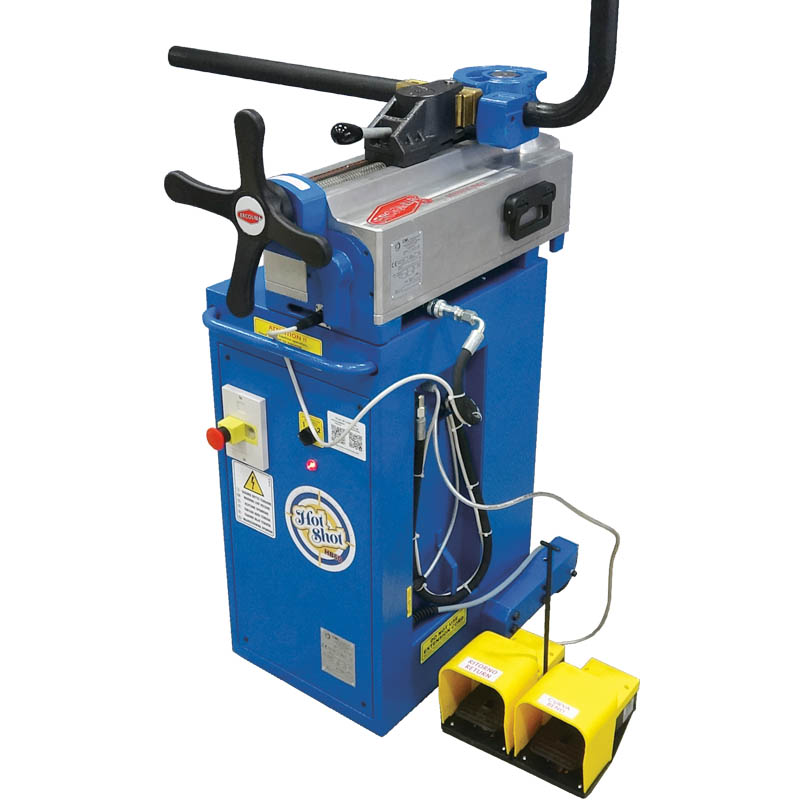

HB60 Hot Shot

HB60 Hot Shot: Bends to 76 x 3 mm Tube

Electrical Options:
HB60-M2 – 120V 1 ph
HB60-T – 480V 3ph

VIEW THIS VIDEO FOR AN OVERVIEW AND DEMO OF ERCOLINA’S HB60 HOT SHOT ROTARY DRAW BENDER!

Ercolina’s HB60 Hot Shot Bender is ideal for producing tight radius consistent quality bends in pipe, tube and solids. Note: Bending square tube requires tooling modified for crush style bends for easy removal after the bend.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

• Mild steel tube capacity 76 x 3 mm
• Pipe capacity 2″ Gas inches (4 mm) cpacity
• Square tube capacity – consult factory
• Maximum CLR 266
• Bend to CLR as small as 2D
• Hybrid hydraulic gear driven rotary draw bend action
• Quickly bend to 180° in seconds with patented ergonomic function – no ratcheting or repositioning
• Easy set and view angle degree wheel with auto stop for repeatable bends
• Draws tube from one direction for easier sequential bending
• Swing away counter bending die vise allows easy material on and off maintaining position without secondary locking

• Patented quick change system accepts all Ercolina tooling
• Precision one-piece cast steel tooling available in multiple centerline radii accommodates a variety of materials and wall thicknesses
• One piece solid bronze counter bend die for longer tool life and rigid support throughout the bend
• Machine case engineered for strength with high section modulus design
• Bend head swivels to accommodate any size shop space
• Single or three phase electric power available
• All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.

ROTARY DRAW ACCESSORIES

Use Ercolina’s rotary draw accessories to expand the capabilities of your Ercolina machine. Not sure what you need? Call us and we will walk you through which accessories would best suit your requirements.
