Super Bender® SB48

Super Bender® SB48: Bends to 48 x 3.5 mm Tube

Electrical Options:
110V Single Phase

ERCOLINA’S SUPER BENDER® SB48 ROTARY DRAW BENDER BENDING 1-1/2″ TUBE – .120 WALL

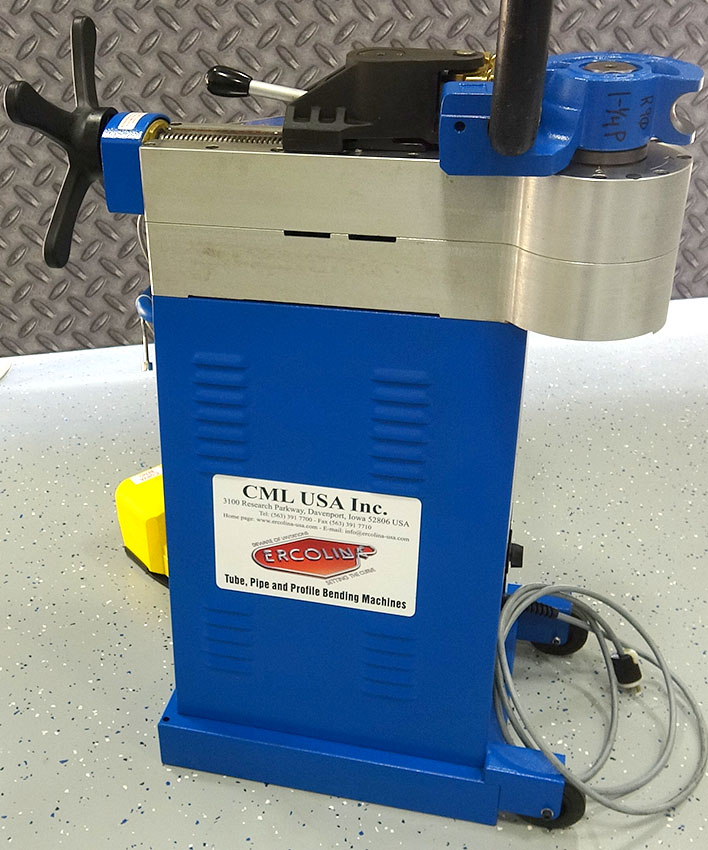

Ercolina SB48 Super Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

• Mild steel tube capacity 48 x 3.5 mm
• 1-1/2″ Gas inches (3.6 mm) capacity
• Square tube capacity 38 x 38 x 3 mm
• Maximum CLR 225 mm
• Bend to CLR as small as 2D
• Easy-to-read windows-based touchscreen control displays machine position, current status and alarm functions on one screen for greater convenience
• Touch screen indicates bend angle, springback and bend speed for each angle within the program
• Patented swing away counter bend die vise offers easy loading and unloading of work piece, monitored electronically for greater accuracy
• Automatically monitors and adjusts bending speed throughout bend cycle providing maximum torque and protecting machine components

• Quick-change tooling system
• Digital display of bend angle
• Material springback compensation
• Foot pedal control for hands-free operation
• Counterbending die positioning monitored electronically for accuracy and repeatability
• Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
• Portable with base wheels and lift handle
• No hydraulic components
• All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.

ROTARY DRAW ACCESSORIES

Use Ercolina’s rotary draw accessories to expand the capabilities of your Ercolina machine. Not sure what you need? Call us and we will walk you through which accessories would best suit your requirements.

A40/P TWO AXIS POSITIONER

A40-P Two Axis Positioner is ideal for repetitive parts and left and right mirror images. Use with Ercolina’s Super Bend-Tech SE software to quickly layout and produce drawings for bending applications.

BENDING SOFTWARE

Use Ercolina’s Super Bend-Tech SE bending software to quickly layout and produce drawings for pipe and tube rotary draw bending applications! Ideal for use with A40-P Two Axis Positioner.
