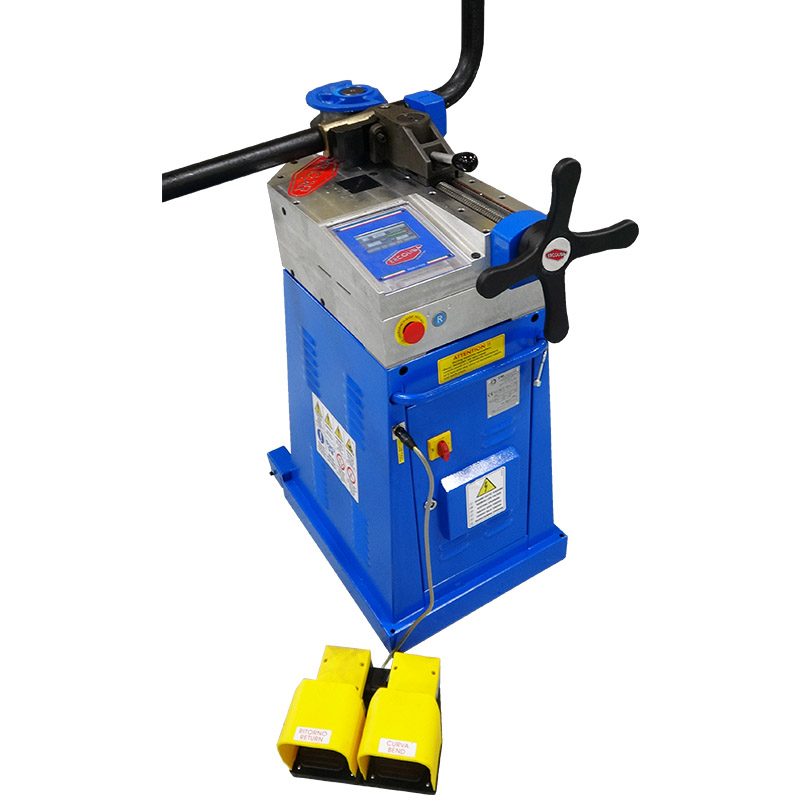

TB60-TC Top Bender

TB60-TC Top Bender®: Bends to 60 x 4mm Tube

Electrical Options:
220V Single Phase

VIEW THIS VIDEO TO SEE ERCOLINA’S TB60-TC TOP BENDER® ROTARY DRAW BENDER IN ACTION BENDING OVAL PROFILE 1″x1.75″ – R 8.25″!

Ercolina TB60-TC Super Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

• Mild steel tube capacity 60 x 4 mm
• 2″ Gas inches (4 mm) capacity
• Square tube capacity 50 x 50 x 3 mm
• Maximum CLR 380 mm
• Bend to CLR as small as 2 x Ø
• Easy-to-read windows-based touchscreen control displays machine position, current status and alarm functions on one screen for greater convenience
• Touch screen indicates bend angle, springback and bend speed for each angle within the program
• Patented swing away counter bend die vise offers easy loading and unloading of work piece, monitored electronically for greater accuracy
• Automatically monitors and adjusts bending speed throughout bend cycle providing maximum torque and protecting machine components

• Quick-change tooling system with multiple radii available
• Right or left hand bending available with vise accessory
• Automatically stops at desired bend angle to end cycle
• Unlimited program storage for quick recall
• Use control panel or foot pedal to initiate bend and return functions
• Counterbending die positioning monitored electronically for accuracy and repeatability
• Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
• No hydraulic components
• Classic Ercolina Top Bender design reduces floor space requirement and stores easily to save shop floor space

ROTARY DRAW ACCESSORIES

Use Ercolina’s rotary draw accessories to expand the capabilities of your Ercolina machine. Not sure what you need? Call us and we will walk you through which accessories would best suit your requirements.

A40/P TWO AXIS POSITIONER

A40-P Two Axis Positioner is ideal for repetitive parts and left and right mirror images. Use with Ercolina’s Super Bend-Tech SE software to quickly layout and produce drawings for bending applications.

BENDING SOFTWARE

Use Ercolina’s Super Bend-Tech SE bending software to quickly layout and produce drawings for pipe and tube rotary draw bending applications! Ideal for use with A40-P Two Axis Positioner.
