MG030 Mandrel Bender

Request a quote on this mandrel bender or call 519-455-7100, for immediate assistance.

030 Mandrel Bender: Tube Capacity to 64 x 3 mm at 2 x Ø

Electrical Options:
220V or 480V Three Phase

THIS VIDEO SHOWS ERCOLINA’S 030 MANDREL BENDER CREATING QUALITY BENDS IN 2-1/2″ OD STAINLESS STEEL!

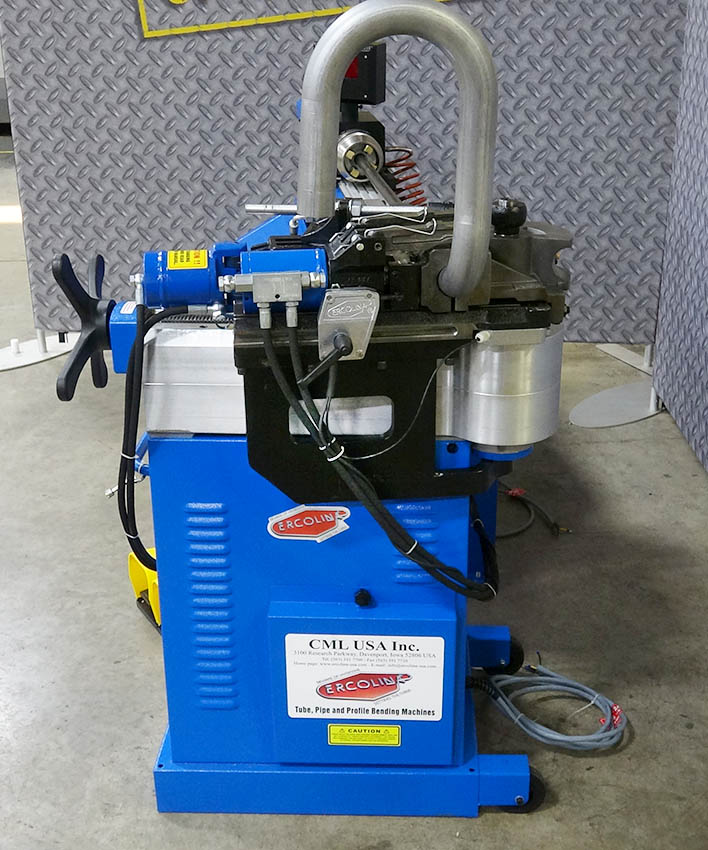

Ercolina’s 030 Mega Bender with mandrel system is ideal for prototype or small production mandrel bending applications.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

• Mild steel tube capacity 64 x 3 mm at 2 x Ø
• 2.5″ Gas inches Sch. 40 capacity
• Square tube capacity 60 x 60 x 2 mm
• Pipe capacity 1.5″ Sch. 40
• Maximum bend radius 200 mm
• Bend to CLR as small as 1.5 x Ø
• Variable bending speed
• Programmable bend angle
• Ideal for bending handrail, thin wall mild steel, stainless steel, bend grade aluminum and other materials
• Programmable bend sequencing and mandrel retraction

• Independent clamp and pressure die adjustment
• Quick change tooling reduces setup time
• Bending software available for part layout guideline
• Reference display of Y & B axis to assist set-up
• Y – Feeding manual with adjustable stops
• B – Feeding manual with adjustable stops
• C – NC programmable bend angle
• A15/H76 – 5′ mandrel table only
• A3/H76 – 10′ mandrel table only
• A6/H76 – 20′ mandrel table only
